Bus Shelter

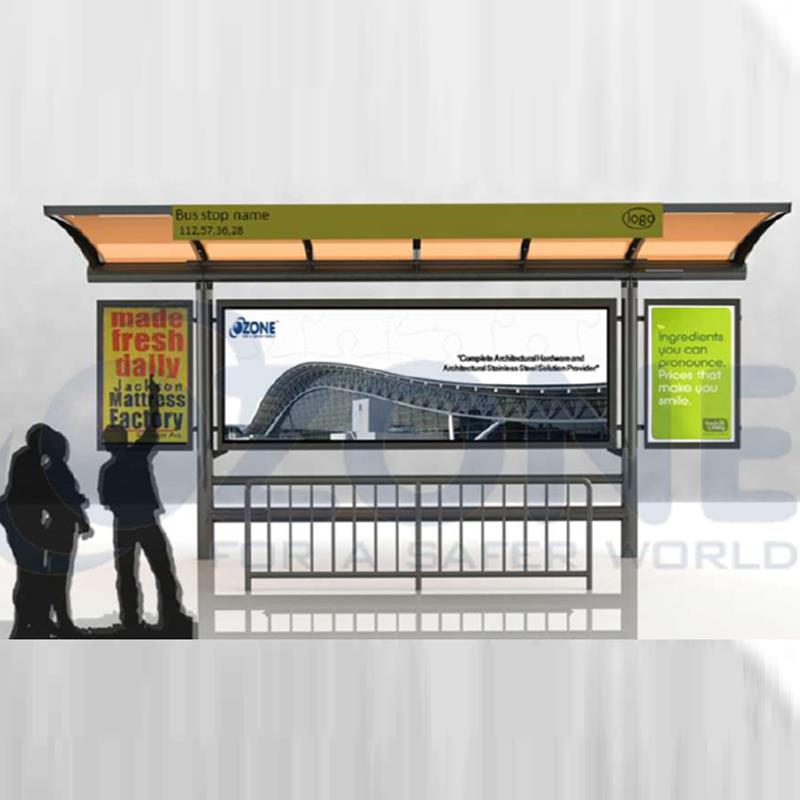

- Fabrication, supply and installation of SS 304 Grade Bus Shelter with tubular structure and trussed roof
- 10 mm thick multilayer polycarbonate sheet with 35% light transmission, and G.E plastics with 5 years warranty fixed on the top of roof

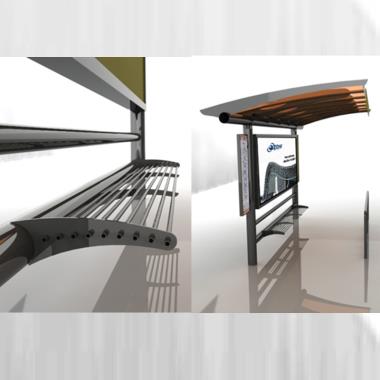

- Tubular bench made of SS 304 grade pipe & plate fixed between the vertical posts with seating capacity of 8 persons
- Name plate with necessary info in display format printed on vinyl of L.G make pasted on the name plate area
- Back-lit Aluminum signage (6063-T5) with inbuilt STRONG clipping & frame arrangement for holding the flex or digital media along with all necessary cleats and corner
|
Model No: |
OZ-BQS-MO4-625 |
||
|
B.Q.S SIZE |
(6m x 2.5)m |
||
|
DISPLAY DISCRIPTION |
|||
|
NAME |
USE |
SPEC |
AREA(sqm) |
|
Name plate |
public notice |
Non illuminated |
0.72 |
|
Middle signage |
commercial |
back lit |
4.95 |
|
Left signage |
commercial |
back lit |
1.26 |
|
Right |
commercial |
back lit |
1.26 |
|
Total area commercial |
7.47 |
||
